勞斯萊斯柴油發電機組配件OE50043凸輪軸、OE52803/3曲軸、OE47907缸套、

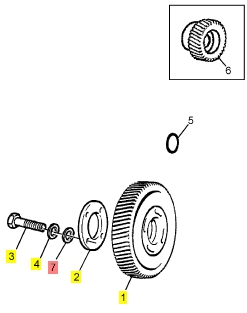

項目 零配件號碼 最近的部分號碼 描述

1 OE50873 1 OE50873 傳動機構

2 1 圈

3 UF1556 4 UF1556 固正螺釘

4 ST16260 4 0920054 墊圈

7 CV24901 4 CV24901 墊圈

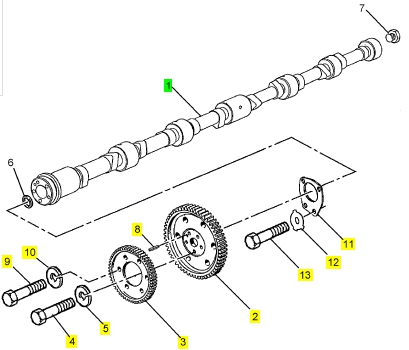

項目 零配件號碼 最近的部分號碼 描述

1 OE50043/1 1 OE50043/1 Z 凸輪軸

2 OE50882 1 OE50882 凸輪軸傳動機構

3 OE50883 1 OE50883 傳動機構

4 OE4391 5 OE4391 螺拴

5 0920055 5 0920055 墊圈

8 OE4421 1 OE4421 銷

9 UF1554 6 UF1554 固正螺釘

10 0920054 6 0920054 墊圈

11 OE23424 1 OE23424 推力板

12 KU10009 3 KU10009 正位鍵墊圈

13 UF1604 3 UF1604 固正螺釘

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 OE50043/1 1 OE50043/1Z CAMSHAFT

2 OE50882 1 OE50882 CAMSHAFT GEAR

3 OE50883 1 OE50883 GEAR

4 OE4391 5 OE4391 BOLT

5 0920055 5 0920055 WASHER

8 OE4421 1 OE4421 PIN

9 UF1554 6 UF1554 SETSCREW

10 0920054 6 0920054 WASHER

11 OE23424 1 OE23424 THRUST PLATE

12 KU10009 3 KU10009 TAB WASHER

13 UF1604 3 UF1604 SETSCREW

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

6 ST33612 2 ST33612 PLUG

7 UF5404 1 UF5404 PLUG

項目 零配件號碼 最近的部分號碼 描述

OE3844 6 OE3844 扣環

OE42017 6 OE42017 栓塞

ST21914 6 ST21914 密封 - O 的圈

1 OE52803/3 1 OE52803/3 曲軸裝備

3 OE48929 1 OE48929 曲軸傳動機構 U72075

3 OE51006 1 OE51006 曲軸傳動機構 U72076

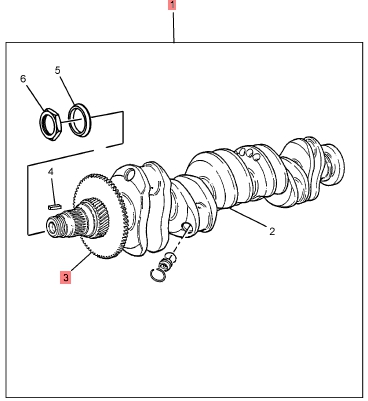

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

OE3844 6 OE3844 SNAP RING

OE42017 6 OE42017 PLUG

ST21914 6 ST21914 SEAL - O RING

1 OE52803/3 1 OE52803/3 CRANKSHAFT KIT

3 OE48929 1 OE48929 CRANKSHAFT GEAR U72075

3 OE51006 1 OE51006 CRANKSHAFT GEAR U72076

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 1 CRANKSHAFT

2 1 CRANKSHAFT

3 OE51694 1 OE51694 CRANKSHAFT GEAR

(3) OE45631 1 OE45631 CRANKSHAFT GEAR

4 OE16842 1 OE16842 KEY

5 OE2789 1 OE2789 BEARING

6 OE42045 1 OE42045 NUT

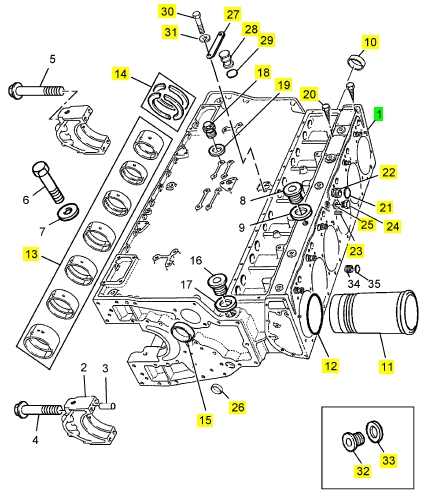

項目 零配件號碼 最近的部分號碼 描述

1 OE51565 1 OE51565 曲橋箱

10 ST43321 1 ST43321 栓塞

11 OE47907 1 OE47907 缸套

11 OE51589 1 OE51589 缸套

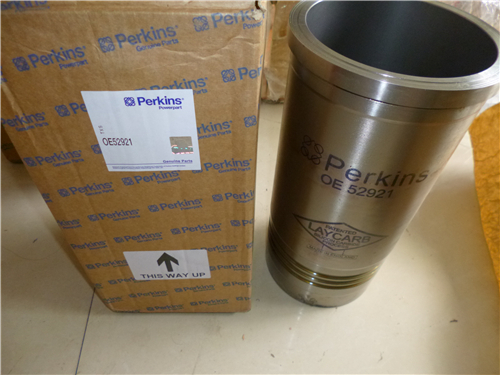

11 OE52515 6 OE52921 缸套

12 OE52244 18 OE52244 密封

13 KRP3107/010 1 KRP3107/010 要點橋承裝備 -U/S

13 KRP3107/020 1 KRP3107/020 要點橋承裝備 -U/S

13 KRP3107/030 1 KRP3107/030 要點橋承裝備 -U/S

13 KRP3107/040 1 KRP3107/040 要點橋承裝備 -U/S

13 KRP3107 1 KRP3107 要點橋承裝備

14 KRP3200/013 1 KRP3200/013 插入墊圈裝備 -O/S

14 KRP3200 1 KRP3200 推力墊圈裝備

15 OE50629 1 OE50629 凸輪軸襯套

18 ST20101 1 ST46076I 栓塞

19 ST49851 1 ST49851 墊圈

20 OE2970 4 OE2970 螺旋

21 ST45105 12 ST45105 密封 - O 的圈

22 OE1595 6 OE1595 線橋

23 OE2814 4 OE2814 軋輥銷

24 OE3385 1 OE52920I 栓塞

25 ST49887 1 ST49887 墊圈

26 ST43321 1 ST43321 栓塞

27 OE50477 1 OE50477 板夾合

28 OE50476 1 OE50476 栓塞

29 ST21913 2 ST21913 密封 - O 的圈

30 UF1503 2 UF1503 螺拴

31 0920053 2 0920053 墊圈

32 ST20106 1 ST20106 栓塞

33 ST49856 1 ST49856 墊圈

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 OE51565 1 OE51565 CRANKCASE

10 ST43321 1 ST43321 PLUG

11 OE47907 1 OE47907 LINER - PRESS FIT

11 OE51589 1 OE51589 LINER - PRESS FIT

11 OE52515 6 OE52921 LINER - PRESS FIT

12 OE52244 18 OE52244 SEAL

13 KRP3107/010 1 KRP3107/010 MAIN BEARING KIT - U/S

13 KRP3107/020 1 KRP3107/020 MAIN BEARING KIT - U/S

13 KRP3107/030 1 KRP3107/030 MAIN BEARING KIT - U/S

13 KRP3107/040 1 KRP3107/040 MAIN BEARING KIT - U/S

13 KRP3107 1 KRP3107 MAIN BEARING KIT

14 KRP3200/013 1 KRP3200/013 THRUST WASHER KIT - O/S

14 KRP3200 1 KRP3200 THRUST WASHER KIT

15 OE50629 1 OE50629 CAMSHAFT BUSH

18 ST20101 1 ST46076I PLUG

19 ST49851 1 ST49851 WASHER

20 OE2970 4 OE2970 SCREW

21 ST45105 12 ST45105 SEAL - O RING

22 OE1595 6 OE1595 BOBBIN

23 OE2814 4 OE2814 ROLL PIN

24 OE3385 1 OE52920I PLUG

25 ST49887 1 ST49887 WASHER

26 ST43321 1 ST43321 PLUG

27 OE50477 1 OE50477 PLATE CLAMPING

28 OE50476 1 OE50476 PLUG

29 ST21913 2 ST21913 SEAL - O RING

30 UF1503 2 UF1503 BOLT

31 0920053 2 0920053 WASHER

32 ST20106 1 ST20106 PLUG

33 ST49856 1 ST49856 WASHER

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 7 CAP

3 OE2349 3 OE2349 DOWEL

4 OE51873 12 OE51873 SETSCREW

5 OE51874 8 OE51874 SETSCREW

6 UF1670 6 UF1670 SETSCREW

7 ST15905 6 ST15905 WASHER

8 UF5408 6 UF5408 PLUG

9 ST49896 6 ST49896 WASHER

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 1 CYLINDER BLOCK KIT

2 OE50339 1 OE52387 HOUSING

3 OE50895 1 OE50895 GASKET - OIL SEAL HOUSING

4 OE50255 1 OE50255 SEAL - REAR END OIL

5 ST10650 1 ST10650 SEAL - O RING

6 UF1502 8 UF1502 BOLT

7 ST16259 8 0920053 WASHER

8 OE4421 2 OE4421 PIN

10 OE281 1 OE281 COVER

11 OE50886 1 OE50886 GASKET

12 UF1504 4 UF1504 BOLT

13 ST16259 4 0920053 WASHER

14 UF1503 2 UF1503 BOLT

15 ST49883 2 ST49883 WASHER

16 ST33628 1 ST33628 PLUG

20 OE49593 1 OE49593 PLATE

21 OE50899 1 OE50899 GASKET - BLANKING PLATE

22 UF1503 2 UF1503 BOLT

23 ST16259 2 0920053 WASHER

24 ST20137 2 ST20137 PLUG

25 ST49899 1 ST49858 WASHER

26 ST20133 1 ST20133I PLUG

27 ST49853 2 ST49853 WASHER

30 OE48824 1 OE48824 PLUG

31 ST49853 1 ST49853 WASHER

32 ST20103 1 ST46078I PLUG

33 OE52315 2 OE52315 BOLT

35 ST33617 1 ST33617 PLUG

36 OE51040 1 OE51040 BRACKET

37 UF1603 2 UF1603 BOLT

38 0920055 2 0920055 WASHER
